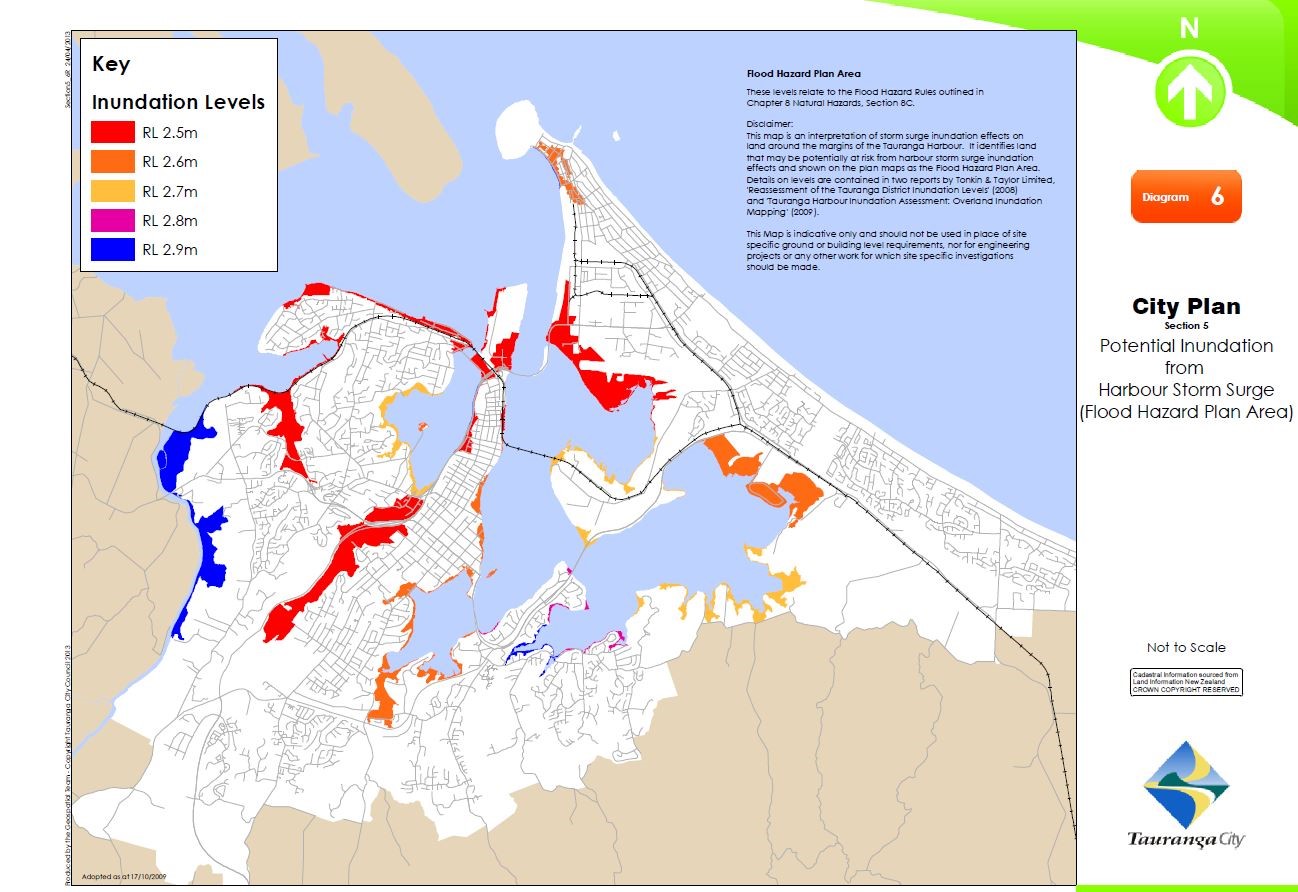

Name: Potential Inundation from Harbour Storm Surge

Display Field: Location

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: These levels relate to Flood Hazard Rule outlined in Chapter 8 Natural Hazards, Section 8.10

Service Item Id: df7f1abeaa0146088327f5026326a280

Copyright Text: Tim Watson - GIS Specialist - TCC, Campbell Larking - Environmental Planer - TCC

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 200000

Max Scale: 10

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1872614.255
YMin: 5818391.218
XMax: 1886045.0690000001
YMax: 5830205.643
Spatial Reference: 2193  (2193)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: RuleIDLabel
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: RL 2.5m Moturiki or RL 2.3m NZVD16
  Label: RL 2.5m Moturiki or RL 2.3m NZVD16
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 0, 0, 255]
  Outline:
  Style: esriSLSNull
  Color: [110, 110, 110, 255]
  Width: 0
• Value: RL 2.6m Moturiki or RL 2.4m NZVD16
  Label: RL 2.6m Moturiki or RL 2.4m NZVD16
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 106, 20, 255]
  Outline:
  Style: esriSLSNull
  Color: [110, 110, 110, 255]
  Width: 0
• Value: RL 2.7m Moturiki or RL 2.5m NZVD16
  Label: RL 2.7m Moturiki or RL 2.5m NZVD16
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 190, 59, 255]
  Outline:
  Style: esriSLSNull
  Color: [110, 110, 110, 255]
  Width: 0
• Value: RL 2.8m Moturiki or RL 2.6m NZVD16
  Label: RL 2.8m Moturiki or RL 2.6m NZVD16
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [230, 0, 164, 255]
  Outline:
  Style: esriSLSNull
  Color: [110, 110, 110, 255]
  Width: 0
• Value: RL 2.9m Moturiki or RL 2.7m NZVD16
  Label: RL 2.9m Moturiki or RL 2.7m NZVD16
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [0, 0, 255, 255]
  Outline:
  Style: esriSLSNull
  Color: [110, 110, 110, 255]
  Width: 0
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE_Length )
• SHAPE.STArea() ( type: esriFieldTypeDouble, alias: SHAPE_Area )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ID ( type: esriFieldTypeInteger, alias: ID )
• levelMVD ( type: esriFieldTypeDouble, alias: levelMVD )
• Location ( type: esriFieldTypeString, alias: Location, length: 20 )
• RuleID ( type: esriFieldTypeInteger, alias: RuleID , Coded Values: [1: RL 2.5m] , [2: RL 2.6m] , [3: RL 2.7m] , ...3 more... )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• LevelNZVD16 ( type: esriFieldTypeDouble, alias: LevelNZVD16 )
• RuleIDLabel ( type: esriFieldTypeString, alias: RuleIDLabel, length: 50 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
