Parent Layer: Wairakei Urban Growth Area Staging Plan

Name: Open Drain

Display Field: label

Type: Feature Layer

Geometry Type: esriGeometryPolyline

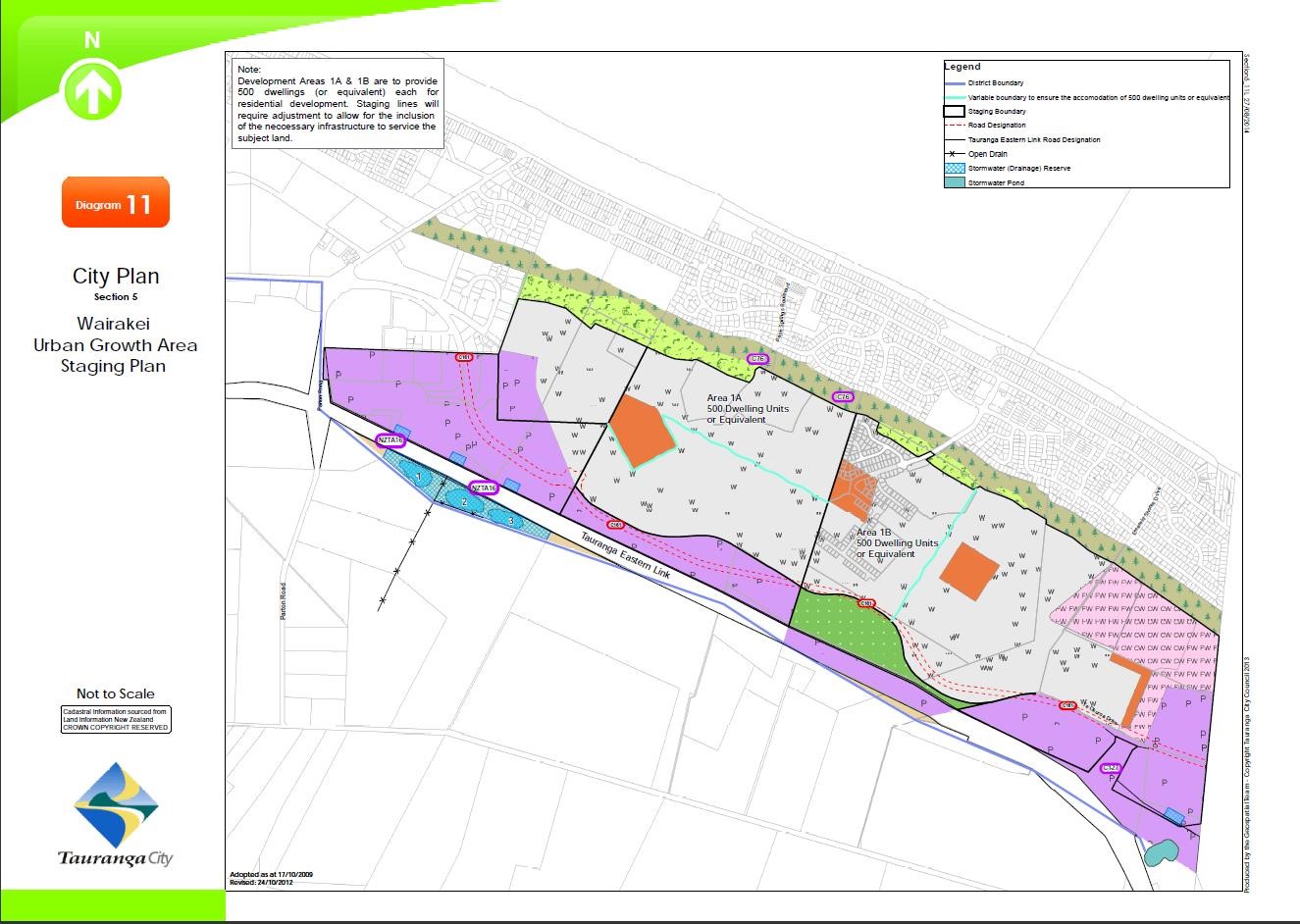

Description: THIS FEATURE CLASS SHOWS AN OPEN DRAIN AND TITLE BLOCK FOR DIAGRAM 11, WHICH WERE DIGISTISED USING GEOREFERENCED MAP PROVIDED BY CAMPBELL LARKING (TCC ENVIRO PLANNING).

Service Item Id: df7f1abeaa0146088327f5026326a280

Copyright Text: GEOSPATIAL TEAM LEADER, TAURANGA CITY COUNCIL (GIS CUSTODIAN) AND SENIOR POLICY PLANNER, CITY PLANNING AND GROWTH, TAURANGA CITY COUNCIL (TECHNICAL CUSTODIAN)

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Effective Min Scale: 100000

Effective Max Scale: 5000

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1891777.5369999995
YMin: 5819198.7542
XMax: 1892264.3340999996
YMax: 5819820.4466
Spatial Reference: 2193  (2193)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: label
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: blackline
  Label: Open Drain
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 10
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• label ( type: esriFieldTypeString, alias: label, length: 50 )
• RuleID ( type: esriFieldTypeInteger, alias: RuleID , Coded Values: [1: Open Drain] , [-1: Free Representation] )
• Override ( type: esriFieldTypeBlob, alias: Override )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
